Configuring a Terminal Server Session
Setting up a Terminal Server Session between a BRUT and RRUT on 4.05.01
Configure one of the Serial ports from each unit as a Terminal Server, setting the BRUT as the Master:

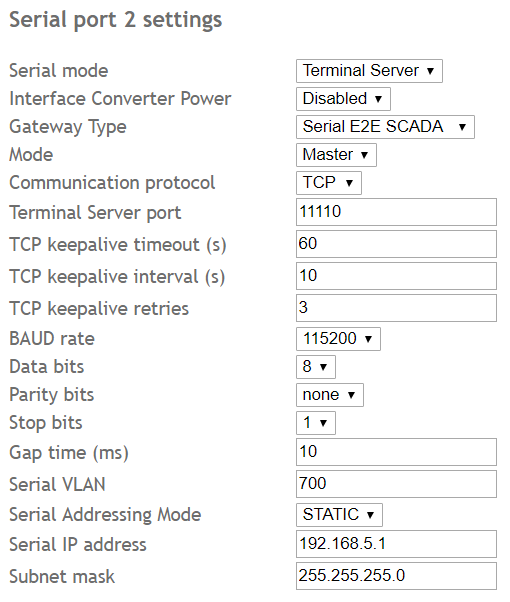

BRUT CCMS, (Serial IP must be in a different subnet than Eth IP, and Serial VLAN must be separate from Management VLAN):

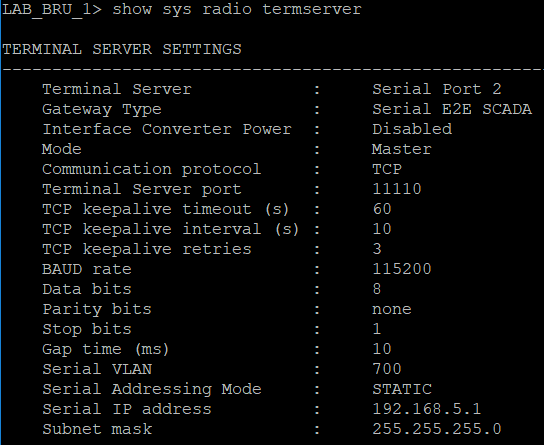

BRUT CLI:
RRUT CCMS, (Set as Slave, the Master IP is that of the associated BRUT):
RRUT CLI:
Connect PC to each Serial Terminal Server port via USB to Serial adaptors.
Typing in BRUT CLI should be displayed in RRUT, and vice-versa.
